Your Benefits
The vision behind PERI InSite Construction
How it works
The interaction of our sensors and our web application is crucial for optimising the concreting process. You always have the choice of whether you want to use individual sensors or the entire package for your project. Below you will find a brief overview of the products currently available.
ISC Temperature Monitoring and Concrete Maturity
The ISC Temperature Monitoring and Concrete Maturity Kit allows the monitoring of the temperature in the concrete and determination of the resulting strength. This can optimise the utilisation of the formwork and can shorten operating times. Compared to conventional methods, no costly and time-consuming reading and recording of the measuring points is required during the concreting process.

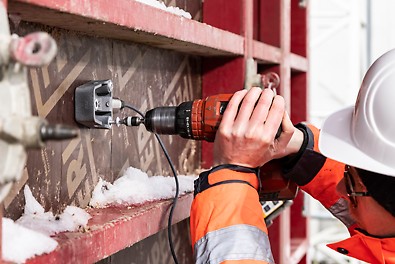

Pressure Monitoring
The ISC Pressure Monitoring Set improves the level of safety during the concreting process by determining the concrete pressure acting on the formwork in real time. This ensures optimum utilisation of the formwork, reduces costs and minimises the risk of formwork breaks and deformations.
Determination of the concrete fill level
The ISC Filling Detection Set measures the concrete level even in hard-to-reach areas of the formwork and minimises the risk of gaps between the concrete and adjacent components. This ensures a high concrete quality.
Determination Water-Cement-Ratio
The ISC SONO WZ Analyser is used for efficient determination of the water-cement ratio in fresh concrete and provides reliable measurement results using innovative TRIME® radar technology. The measurement is carried out in only a few minutes thanks to the simple and structured procedure – without any complicated test set-up process. This leads to considerable time savings compared to measurements with the Darr method.
Hub
The ISC Hub functions as a gateway to the Internet. It relays data collected by the nodes and forwards it on set time intervals via the LTE network to the internet and the web services located on the Web Portal.
Web Application
With the ISC Web Application, the real-time data collected by the sensors can be analysed. Thanks to the responsive design, access is possible from various end devices regardless of location. With its simple, digital reporting function, the web application minimises the amount of documentation work required.
More Information
Here you find detailed information about the sensors and the web application.
Projects
Read here how our customers were able to realise time and cost advantages in their construction projects through the use of PERI InSite Construction.
TRIIIPLE, Austria
With its usable floor space of around 70,000 m², the TrIIIple is writing a new chapter in Viennese residential history. The ingenious design of the TrIIIple Towers is characterised by the cantilevers on the 11th and 22nd floors. A particular highlight was the use of the PERI InSite Construction Temperature Monitoring and Concrete Maturity Kit. With the sensors used, the temperature was measured at different points in the concrete and the data was loaded directly into the ISC Web Application. This minimised costly waiting times up to the point where the concrete is fully hardened. Customer: STRABAG AG
Heidelberg Cement, Germany
The new headquarters of the concrete manufacturer HeidelbergCement consisted of three interconnected building sections of different heights. The focal point of the new foyer is three spectacular, x-shaped tree supports, which statically serve as the root of the building. The special project highlight was the formwork and concreting of these tree props in SB 4 fair-faced concrete quality. The PERI InSite Construction Pressure Monitoring Kit optimized the concreting pours by monitoring the concrete pressure. Customer: Diringer & Scheidel GmbH & Co. KG, Mannheim Photo: Thilo Ross
Regent Street Flyover, UK
The project is a major refurbishment of two concrete bridges along a busy traffic route in Leeds city centre. Cidon Construction relied on the ISC pressure sensor for a one-sided, 6 m high concrete pour on the south-eastern abutment wall. Due to the required surface finish, no through sleepers could be used, which added to the challenge. The use of the pressure sensors helped to precisely determine the optimal concreting speed and to prevent overloading of the formwork, thus increasing safety. --> Request picture material from UK Customer: Cidon Construction
New Hall 1, Switzerland
A new commercial and storage hall with dimensions of approx. 60 m x 70 m is currently being built in Bassersdorf, Switzerland. The project also includes three underground car parks, storage areas, technical rooms and offices. For the construction of the walls, PERI's MAXIMO panel formwork was used, which rose a total of 13 m in height. The formwork was equipped with ISC pressure sensors, which meant that concreting could be carried out more quickly. Customer: Anliker AG
Elisabethplatz, Munich
The Elisabethplatz site creates space for needed housing as well as areas for restaurants, retail and offices. In 2020, the construction of two buildings was started in a multifaceted design, in keeping with the neighborhood. In addition to the TRIO, DOMINO and MAXIMO structure, the InSite temperature measurement system was used.
Silvio Schmid
Foreman
Anliker AG
Thanks to concrete pressure monitoring with the PERI ISC, the concrete pressure on the formwork could be monitored live on a minute-by-minute basis during concreting of the 13 m high walls. This gave us enormous safety during the concreting process of the walls. Depending on the pressure development, the climbing speed could be adjusted to the concrete pressure accordingly. Thanks to PERI ISC, all walls from 11 m to 13 m high could be concreted even at outside temperatures of around 5°C without any concerns about the formwork pressure being too high.
Further Reference Projects
Find more reference projects and statements here and learn how PERI Insite Construction has optimised the concreting processes of our customers.
